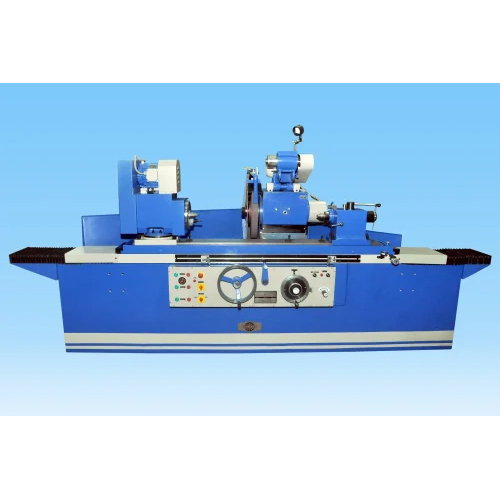

ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment
550000 INR/Unit
Product Details:
- Product Type ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment
- General Use Industrial
- Weight (kg) 1300 Kilograms (kg)
- Automatic Yes
- Feature High Efficiency
- Color Blue
- Warranty Yes
- Click to View more
X
ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment Price And Quantity
- 550000 INR/Unit
- 1 Unit
ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment Product Specifications
- Industrial
- High Efficiency
- Yes
- 1300 Kilograms (kg)
- ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment
- Blue
- Yes
ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment Trade Information
- 10-15 Days
- All India
Product Description
ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment offers precision and versatility, ideal for various industrial applications. Featuring a robust hydraulic system, it ensures smooth and efficient grinding operations. With its integrated ID attachment, it enables accurate internal grinding, enhancing productivity. Designed for durability and performance, this machine is equipped to meet the demands of modern manufacturing. The advanced features make ABC - 300 Mm Hydraulic Cylindrical Grinding Machine With ID Attachment a reliable choice for businesses seeking high-quality grinding solutions.
| Type of Grinding Machine | Cylindrical Grinding Machine |
| Capacity | 300 mm |
| Maximum Swing Over Bed | 259 mm |
| Grinding Material | Metal |
| Distance between Centers | 300 mm |
| Work Head Swivel | 90 deg |
| Grinding Wheel Diameter(mm) | 300 mm x 25 mm x 127 mm |
| Work Head Center | 130 mm |
| Max. Grinding Length (mm) | 300 mm |
| Dwell at reversals | 0 to 60 sec |
| Job Material | Metal |
| Max. Grinding Wheel Speed (rpm) | 2100 rpm |
| Tail Stock Center | 130 mm |
| Grinding Wheel/Spindle Motor Power (HP/W) | 2 hp |
| X-axis Feed Speed (m/min) | 0.1 to 0.4 mtr. / min |
| Z-axis Feed Speed (m/min) | 2000 mm / per min |
| Max. Table Load (kg) | 20 Kg |
| Weight | 1300 kg |
| Shipping Volume | 4 ft X 3 ft X 3 ft |
| Country of Origin | Made in India |
Specification
|
Models |
PMT/300/130/H |
|
|
Center Height |
MM |
130 |
|
Distance between Centers |
MM |
300 |
|
Maximum Swivel of Table |
Deg. |
+/-8 |
|
Table Speed infinitely variable |
M/Min |
0.1 - 4 |
|
Dwell at reversals |
Sec |
- |
|
Grinding Wheel (d x w) |
MM |
300 x 40 x 76.2 |
|
Wheel head Rapid approach |
MM |
40 |
|
Auto in feed at reversal(Optional) |
MM |
0.01 |
|
Wheel head swivel |
Deg. |
+/-45 |
|
No. Of work head speed. |
Step |
3 OR Variable |
|
Work head swivel. |
Deg. |
+/- 90 |
|
Work head Center. |
MT |
3 |
|
Tail Stock center. |
MT |
3 |
|
Internal Grinding Spindle.(Optional) |
MM |
60 x 250 X 20,000 RPM |
|
45 x 250 X 38000 RPM |
||
