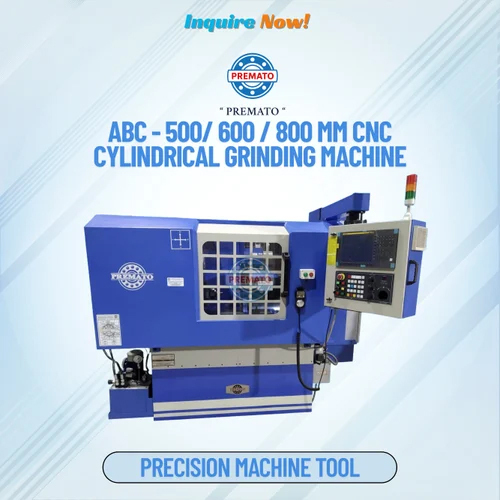

Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH
3050000 INR/Unit
Product Details:
- Product Type Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH
- General Use Industrial
- Automatic Yes
- Feature High Efficiency
- Color Blue
- Warranty Yes
- Click to View more
X
Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH Price And Quantity
- 1 Unit
- 3050000 INR/Unit
Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH Product Specifications
- Yes
- Industrial
- Blue
- Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH
- High Efficiency
- Yes
Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH Trade Information
- 20-30 Days
Product Description
Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH is a high-precision machining tool designed for efficient cylindrical grinding tasks. With its angular head configuration, it offers exceptional flexibility and precision in grinding operations. Featuring a robust construction and advanced CNC controls, this machine ensures consistent and accurate results. Ideal for industries requiring precision grinding solutions, Angular Head CNC Cylindrical Grinding Machine - ABC 600 Mm X 180 CH enhances productivity and quality in manufacturing processes.
Specification
- Model: PMTU/600/180/H.
- Center Height: - 180
- Main Slide is hydraulically operated by reputed hydraulic cylinder.
- 60 mm x 250 mm High precision internal grinding spindle having 16,000 rpm, fitted on attachment
- Hydraulic operated job clamping / de-clamping Collet system will be provided on customer demand.
- Work Head Speed range: - 50 to 450 rpm infinitely variable through imported 3 ph. A.C. variable drive.
- Inbuilt electrical control penal board having all reputed components.
- Automatic Lubrication on main moveable slide by flow control valve.
- Automatic in-feed by AC servo motor and ground ball screw directly coupled with imported coupling.
- LM Guide ways fitted on cross slide.
- Minimum Oscillation Stroke: - 2 mm through Proximity switch.
- Imported endless flat belt for high precision spindle to prevent slippage with dynamic Balanced pulley to avoid vibration
| XY Axis Working Area | 1200 x 1200 mm |
| Workhead Or Tailstock centre | 150 / 200 / 250 mm |
| Feed servo motor torque | 9.55 nm |
| Max Weight of job | 200 Kg |
| Rapid Feed Rate | 5000 epm |
| Distance Between Centers | 300/ 600/ 800 / 1000 / 1250 / 2000 mm |
| Admit between Centers | 300/ 600/ 800 / 1000 / 1250 / 2000 mm |
| Job Material | CI, Steel ,D2, |
| Country of Origin | Made in India |
