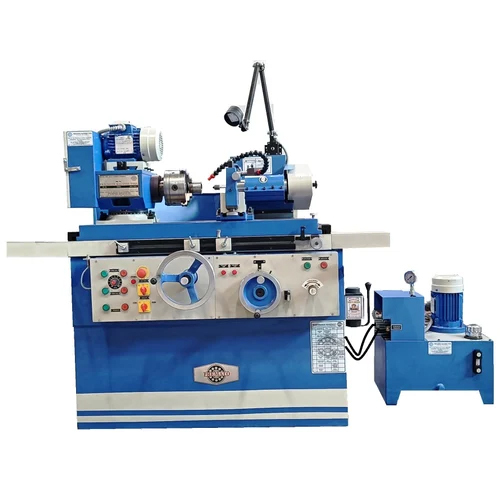

PLC Controlled Internal Bore Grinding Machines
950000.00 INR/Piece
Product Details:
- Product Type Internal Bore Grinding Machines
- General Use Industrial
- Weight (kg) 2300 kg Approx. Kilograms (kg)
- Automatic Yes
- Feature High Efficiency
- Color Blue
- Warranty Yes
- Click to View more
X
PLC Controlled Internal Bore Grinding Machines Price And Quantity
- 950000.00 INR/Piece
- 1 Piece
PLC Controlled Internal Bore Grinding Machines Product Specifications
- Blue
- Yes
- Internal Bore Grinding Machines
- 2300 kg Approx. Kilograms (kg)
- Industrial
- Yes
- High Efficiency
PLC Controlled Internal Bore Grinding Machines Trade Information
- 30 Days
Product Description
Internal Bore Grinding Machines is a precision tool designed for machining the inside diameter of cylindrical workpieces. This specialized equipment is crucial for industries like automotive, aerospace, and tool manufacturing. It ensures high accuracy and surface finish, allowing for the creation of precise components such as engine cylinders, hydraulic cylinders, and injection molds. Internal bore grinding machines come in various sizes and configurations, catering to diverse machining needs and production requirements. The efficiency and reliability make Internal Bore Grinding Machine a valuable asset in modern manufacturing operations.
| Type of Grinding Machine | Internal Grinding Machine |
| Grinding Wheel Diameter | 40 mm |
| Max. Internal Grinding Length (mm) | 300 / 500 / 800 / 1000 / 1200 / 1500 / 2000 mm |
| Grinding Material | Metal |
| Max. Workpiece Length (mm) | 300 / 500 / 800 / 1000 / 1200 / 1500 / 2000 mm |
| Automation Grade | Semi-Automatic |
| Max. Grinding Length (mm) | 300 / 500 / 800 / 1000 / 1200 / 1500 / 2000 mm |
| Job Material | Metal |
| Max. Grinding Wheel Speed (rpm) | 1700 to 1900 rpm |
| Grinding Wheel/Spindle Motor Power (HP/W) | 5 / 7.5 hp |
| X-axis Feed Speed (m/min) | 0.1 to 0.4 mtr. / min |
| Z-axis Feed Speed (m/min) | 2000 mm / per min |
| Max. Table Load (kg) | 80 to 200 Kg |
| Weight | 2300 kg Approx. |
| Shipping Volume | 6 ft x 6ft x 7 ft |
| Country of Origin | Made in India |
